Product Details:
Payment & Shipping Terms:
|
| Light: | LED | Power (W): | 100 |
|---|---|---|---|
| Capacity: | 193L | Refrigerant: | R134A |
| Color: | White | Door No: | Single Door |
| Power Source: | Electric | Voltage (V): | 220 |
| High Light: | 193L Single Door Display Chiller,100W Single Door Display Chiller,193L free standing chiller |
||

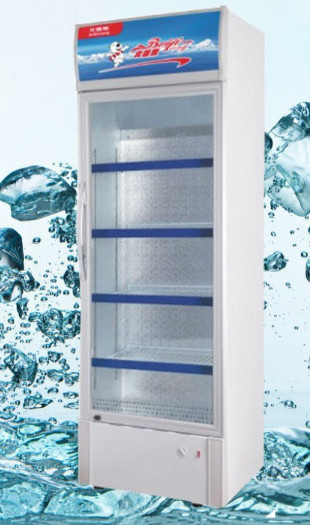

Free Standing Single Glass Door Chiller 193L CB CE Medical Storage
Specifications:
220-240V 50Hz
R134a Refrigerant,70mm foaming thickness
Excellent performance with high efficiency compressor
Fast and deep freezing
Low noisy designing
Door with lock
Inner energy saving bulb
with fan motor
Unique water drainage design for easy cleaning
Univesal wheel for flexible moving
Mechanical control with adjustable thermostat
Similar models with different size as below:
| Factory Art No. | Product Size (CM) | N/G. Weight (KG) | Packing Size (CM) | QTY OF 1x40HQ' | ||||
| L | W | H | L | W | H | |||
| LC-193 | 50.5 | 56.5 | 176.0 | 50/55 | 55.0 | 61.0 | 177.0 | 101PCS |
| LC-233 | 55.5 | 56.5 | 175.0 | 59/65 | 58.0 | 61.0 | 177.0 | 101PCS |
| LC-253 | 55.5 | 56.5 | 190.0 | 63/69 | 58.0 | 61.0 | 1910.0 | 100PCS |
| LC-363 | 64.5 | 60.5 | 198.0 | 75/83 | 68.5 | 64.5 | 202.0 | 71PCS |
Technical Parameter
| Model No. | LC-193 |
| Net Capacity | 193L |
| Top Open Door | 1 |
| Handle | OPTION |
| Lock&Key | Yes |
| Wheel | Yes |
| Rack | 4PCS |
| LED Lamp | Yes |
| Condenser Outside | Option |
| Inner Sliding Glass Door | NA |
| Fan | Option |
| Inner Shelf | Yes |
| Refrigerant | R134a |
| Rated Voltage/Frequency | 220-240V/50HZ |
| Net Weight | 55KG |
| Product Dimension (W*D*H) | 505*565*1760mm |
| Packing Dimension (W*D*H) | 550*610*1770mm |
| Loading Capacity (40HQ) |
101PCS |
Freser supply more than 20 models of deep freezers including single top door series,double top doors series,curved sliding glass door series,flat sliding glass door series,island freezer series and so on.
Available Capacity For Chest Freezer: 108L, 158L, 208L, 258L, 308L, 358L, 418L,518L,608L,728L,868L,1018L,1688L.
Loading Port : Nanjing Port
Delivery time : 30-45days
Payment terms : T/T or L/C
MOQ : 1*40HQ
We provide one year warranty of the compressor and three years of the whole unit.
Our QC team with more than 30 professional and technical enginners inspect all processings from the spare parts inspection, manufacturing inspection to rated random finished products inspection before delivery to ensure the qualified products to be shipped.
We are one profesional freezing factory on chest freezers and showcase with ten engineers and 15 technologist to provide customers with OEM and ODM service.
1) Metal sheet processing line
2) Automatic painting machine
3) Painting line
4) Panited cabinet
5) Evaporator line
1) Evaporator pipe rolled line
2) Inner cabinet assembling line
3) Gas vacuum line4) Foaming line
5) Freezer assembling line
Each freezer will be computerized testing for 120minutes before packing to guarantee its cooling performance.
