Anhui Freser Commercial Cold Chain Technology Co.,Ltd
Home ProductsIce Maker Machine

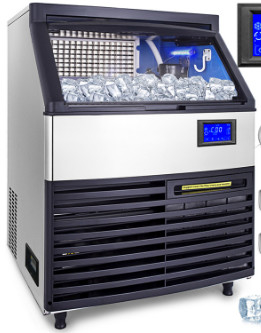

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine

China Anhui Freser Commercial Cold Chain Technology Co.,Ltd certification
China Anhui Freser Commercial Cold Chain Technology Co.,Ltd certification
I'm Online Chat Now

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine

large.img.alt
small.img.alt

Large Image :  200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine

Product Details:
Place of Origin: CHINA
Brand Name: Freser
Certification: A+ ROHS
Model Number: ice maker
Payment & Shipping Terms:
Minimum Order Quantity: 1*40HQ
Price: Negotiation
Packaging Details: carton
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 3000pcs/day
Detailed Product Description
Control Panel: Intelligent LCD Touch Screen Main Body Material: 304/316 Stainless Steel, ABS
Refrigerant: R134A Voltage: 220v
Power(W): 850W Ice Storage: 100KG
Cooling Way: Air Cooling Capacity: 200kg/24h
High Light:

200kg/24h Small Square Ice Maker

,

ROHS Commercial Ice Cube Machine

,

200kg/24h Commercial Ice Cube Maker Machine

Remote Control DB320A Supermarket Bar Commercial Large, Medium And Small Automatic Square Ice Machine

440 lb/24H Commercial Ice Maker

Advanced commercial ice maker equipped with intelligent LCD control panel with buttons that are clear at a glance. Machine status is real-time monitored and auto-detection function reveals operation problems when machine stops making ice. Remind is also offered when ice is full. World famous SECOP compressor ensures reliable performance andlower energy consumption lower. Ice storage of 88 lb (40 kg). Blue light ultraviolet sterilizing lamp guards customer safety.

  • Rapid and Efficient Ice Making
  • Safe and Healthy
  • Microcomputer Automatic Control
  • Completely Equipped with Top Quality

Product Description



Stainless Steel+ABS Ice maker machine 200kg commercial cube ice machine

Features & Details

[RAPID AND EFFICIENT ICE MAKING]- 440 lb (200 kg) per 24H capacity commercial ice maker realizes convenient and efficient ice making experience. 8*18 ice tray for 144 clear cubes one cycle in 12-18 minutes, each is 0.9" (22 mm) cubical, making it perfect for mixed drinks and bottles with small opening. 88 lb (40 kg) ice storage capacity for more flexible application. Heat insulation function prevents ice cubes from melting for 5-7 hours.

[SAFE AND HEALTHY]- Ultraviolet sterilizing lamp equipped to stop bacteria growth and meet your health needs. Ice cubes are crystal clear and thickness can be adjusted by modulating freezing time. This ice maker is sure to be a mighty addition to your business and home.

[MICROCOMPUTER AUTOMATIC CONTROL]- Advanced multi-function LCD control panel with multiple buttons which clearly shows different functions including POWER, RUNNING MODE ADJUSTMENT, CLEAN/SET, ICE THICKNESS/DUTY TIME ADJUSTMENT and ILLUMINATION, helps control ice making process and monitors possible malfunctions.

[COMPLETELY EQUIPPED WITH TOP QUALITY]- Powerful 850W SECOP compressor for fast cooling, low energy consumption, low noise and stable operation. Water filter, dewatering pump, two ice scoops, sealed packaging... All you need is thoughtfully provided. Stainless steel plus ABS construction enables it to be sturdy and robust.

[WIDELY APPLICABLE]- Works great for applications including coffee shops, hotels, bars, KTVs, supermarkets, bakeries, restaurants, cold drink shops, laboratories, schools, hospitals and more. A space saver with adequate storage and powerful performance.

Stainless Steel+ABS Ice maker machine 200kg commercial cube ice machine



Specifications



Specifications

  • Power: 110V, 60 Hz, 850W
  • 24H Capacity: About 440 lb (200 kg)
  • Ice Storage: About 88 lb (40 kg)
  • Reservation Function: 5-7 hours
  • Material: Stainless Steel+ABS
  • Ice Tray: 144 pcs (8*18)
  • Ice Cube Size: 0.9" x 0.9" x 0.9" (22 x 22 x 22 mm)
  • Gross Weight: 163 lb (74 kg)
  • Package Dimension (L x W x H): 30.7" x 29.5" x 40.2" (78 x 75 x 102 cm)

Free spare parts:1. Ice scoop 2. Two water input pipes, two drain pipes 3. Water filter

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 2
200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 3
Packing & delivery

You decide the package and transportion way

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 4



Products show
200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 5
200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 6


2D drawing of the ice making machine( Front, side,back)

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 7

The head of machine

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 8
200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 9
200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 10

Ice storage bin

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 11
200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 12

Tecumseh compressor for 380V/50Hz

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 13

Copeland compressor for 220V/60Hz/3P

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 14

We have 12 patents on the LCD control panel. It is very reliable.

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 15

The finished translucent cube ices were made by the ice making machine

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 16

Our real production line in workshop

200kg/24h Small Square Ice Maker , ROHS Commercial Ice Cube Maker Machine 17




Features of our ice making machine

◆ Advanced LCD tangibly control panel can be controlled by WIFI.
◆ Water-flow design, the capacity can be increased 10% higher than other similar machines.
◆ Anti-dust mesh design,which is removable and easy for cleaning.
◆Oval design of the edges, enhanced durable machine body and 304 stainless steel material design
◆Push-up door type, Space-saving body, Meeting the requirements of small space, Luxury and beauty.
◆Industry-leading copper-nickel evaporator, Shorter freeze and harvest cycle, Full capacity.
◆Front air intake and exhaust, side for hot air spread, easy to clean, enhance the lifetime of machine.
◆Using advanced noise reduction technology to make working noise reduce more than 15%.
◆Overall food-grade PE liner, through the European CE certification, RoHS Test Report.
◆Testing condition:Ambient temp.25℃, Water temp.16℃
◆Application: Supermarket, aquatic product market ,bar, KTV, hotel, coffee shop, factory.ect





1. Cube ice machine features:
















 Freser cube ice machine are widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops, etc.
cube ice machine are highly efficient, energy saving, safe and environmentally friendly and are quickly becoming the most popular choice for clients around the world.
Hot Freon makes the ice peel off; it only takes as fast as 150-180 seconds.
The importation of water drain function makes ice cleaner and crystallizes the ice by draining out the water in the cold water tank.
Evaporator is made of stainless steel SUS304 to meet the sanitary requirements.
2. Product advantage:


a.Easy to operate
b.Stainless Structure
c.Automatic Protection
d.Elegant appearance

b.f .OEM of Italy Scotsman

c.g. provide water filter free of charge







500kg/day Portable Commercial Ice Maker/Ice Cube MachineDetailed description of Strong capacity commercial used cube ice machine:

Operation environment :
Ambient temperature2-43°C.Water temperature 2-38°C.Water pressure 0.13Mpa-0.55Mpa

Installation note:
Minimun installation clearance:Top/sides are 25cm,Back is 12cm.

The Maximum output is on this condition:
Ambient temperature 21°C,water temperature 12°C.

Advantages

Why Choose Us?

Product features:
a. high efficiency compressor
b. strong ice-making capacity
c. food grade refrigerants
d. enhanced durable body and stalinless steel cabinet
e. space-saving design,ideal for bar or under-counter application
f. shorter freeze and harvest cycle means quicker ice recovery
g. front air intake and exhaust,side for hot air spread
h. cube ice, with thickness adjustor. clients can adjust it easily
i. efficient after-sales service
j. professional production experience
k. the serialization of products.

Our service:

All product warranty period is 12month, within this time, we will supply broken parts free, but two points have to clarify clear,

Point1. All products do 24hrs rigorous testing before packing, so machine warranty only under the condition of quality problem . If the user improper operation, spare parts is not provided free of charge. Please operate machine correct and follow user manual, if any problem, pls contact us. we will reply you within 24hrs.

Point 2. When you receive goods, if any question, pls contact us asap, during warranty period, spare parts is free, but shipping fee is burden by customer side.
Point 3. The technical service all the time and 24hrs service for you.

Materials:

Materials:Stainless steel 304Thickness: 0.8mm,

Compressore: Emraco(Italy),Danfoss(Denmark),Aspera(Italy)

Solenoid valve:Saginomiya (Japan).

Accessories:

Primary parts are made by international top manufacturers.
